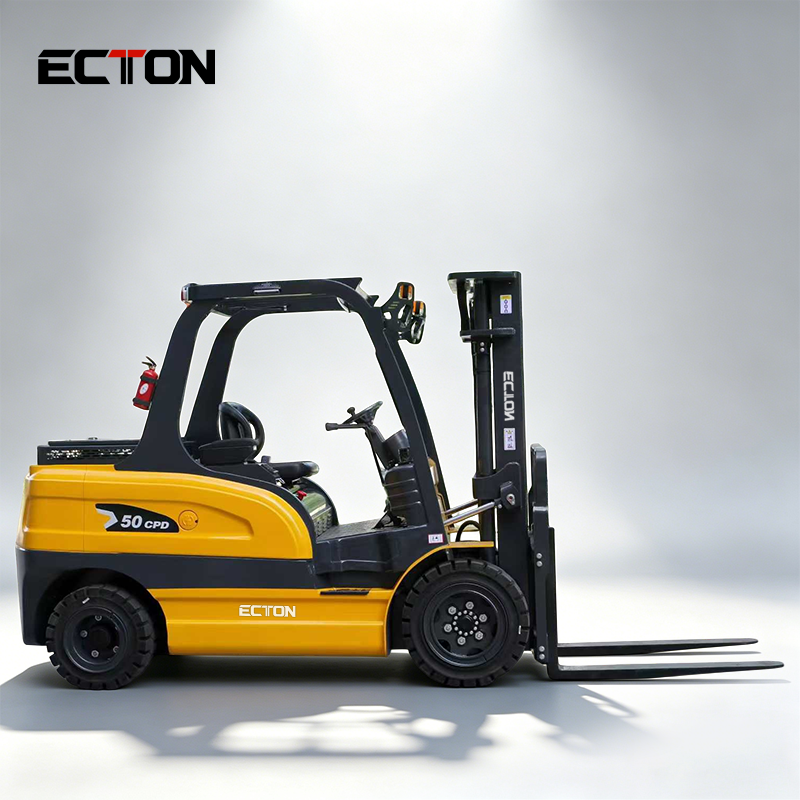

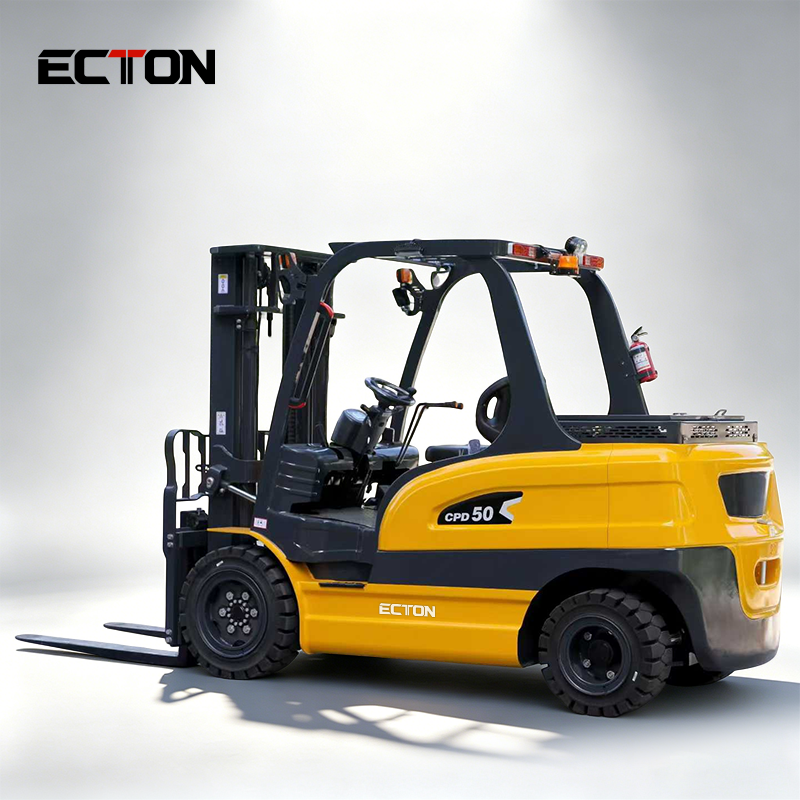

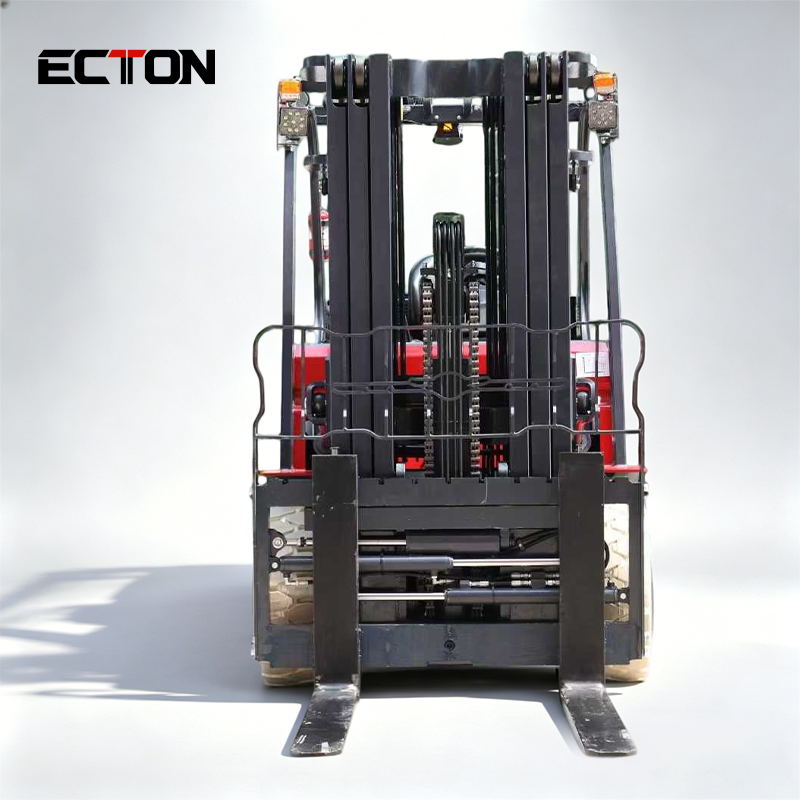

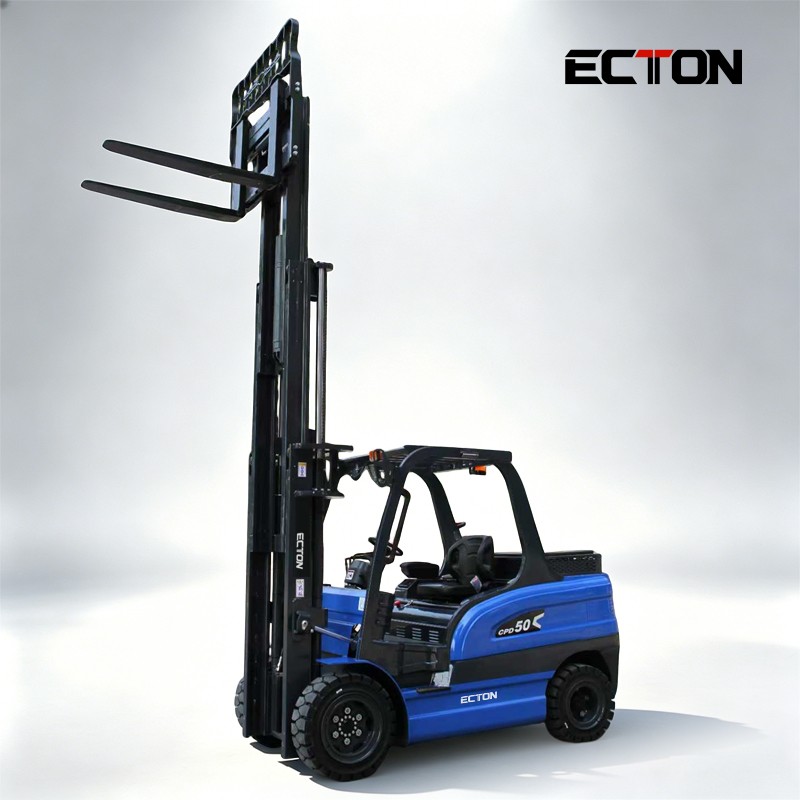

5 Ton Electric Forklift
Ecton 5 Ton Electric Forklift Features
Super strong lifting capacity for 5000kg heavy loads
High-stability design prevents tipping during operation
Long-lasting battery with fast charging function
Rugged chassis for harsh industrial working conditions
Low maintenance design reduces operational costs
Zero emission, compliant with industrial environmental standards
Quality you can see, reliability you can trust.
CPD50 Electric Forklift Specification
| Feature | ||||
| 1.1 | Model | CPD50 | ||
| 1.2 | Power type | Electric | ||
| 1.3 | Operation type | Seated | ||
| 1.4 | Load Capacity | Q | kg | 5000 |
| 1.5 | Load center distance | C | mm | 600 |
| 1.6 | Front overhang | X | mm | 480 |
| 1.7 | Wheelbase | y | mm | 2045 |
| Weight | ||||
| 2.1 | Weight (including battery) | kg | 6200 | |
| Tires, chassis | ||||
| 3.1 | Tire type, drive wheel/steering wheel | Solid | ||
| 3.2 | Drive wheel size (diameter x width) | mm | 250-15 | |
| 3.3 | Steering wheel size (diameter x width) | mm | 23X10-12 | |
| 3.4 | Number of drive wheels, steering wheels | mm | 2X/2 | |
| 3.5 | Drive wheel track | b10 | mm | 1140 |
| 3.6 | Steering wheel track | b11 | mm | 1080 |
| Size | ||||
| 4.1 | Mast and fork tilt angle | α/ β (°) | 5/9 | |
| 4.2 | Mast height after lowering | h1 | mm | 2310 |
| 4.3 | Maximum lifting height of standard mast | h3 | mm | 3000 |
| 4.4 | Mast height when lifting to the highest position | h4 | mm | 4250 |
| 4.5 | Head guard (cockpit) height | h6 | mm | 2260 |
| 4.6 | Seat surface height | h7 | mm | 1180 |
| 4.7 | Height of towing pin center | h10 | mm | 620 |
| 4.8 | Vehicle length | l1 | mm | 4170 |
| 4.9 | Length to vertical surface of fork | l2 | mm | 3060 |
| 4.10 | Overall width | b1/ b2 | mm | 1360 |
| 4.11 | Fork size | s/ e/ l | mm | 50X150X1220 |
| 4.12 | Fork frame outer width | b3 | mm | 1350 |
| 4.13 | Ground clearance of lower end of fully loaded mast | m1 | mm | 175 |
| 4.14 | Minimum ground clearance of vehicle body | m2 | mm | 160 |
| 4.15 | Aisle width of pallet is 1200 wide x 1000 long | Ast | mm | 4480 |
| 4.16 | Aisle width of pallet is 800 wide x 1200 long | Ast | mm | 4680 |
| 4.17 | Turning radius | Wa | mm | 2800 |
| Performance Parameters | ||||
| 5.1 | Travel speed, fully loaded/unloaded | km/ h | 12/13.5 | |
| 5.2 | Lifting speed, fully loaded/unloaded | m/ s | 0.28/0.4 | |
| 5.3 | Lowering speed, fully loaded/unloaded | m/ s | 0.45/ 0.4 | |
| 5.4 | Maximum climbing grade, fully loaded/unloaded | % | 15 | |
| 5.5 | Service brake type | Hydraulic + Mechanical | ||
| 5.6 | Parking brake type | Mechanical | ||
| Motor, power source | ||||
| 6.1 | Drive motor rated power S2 60 minutes | kW | 18 | |
| 6.2 | Lifting motor rated power S3 15% | kW | 21 | |
| 6.3 | Battery voltage | Ah | 80V/600AH | |
| 6.4 | Drive control type | AC | ||
