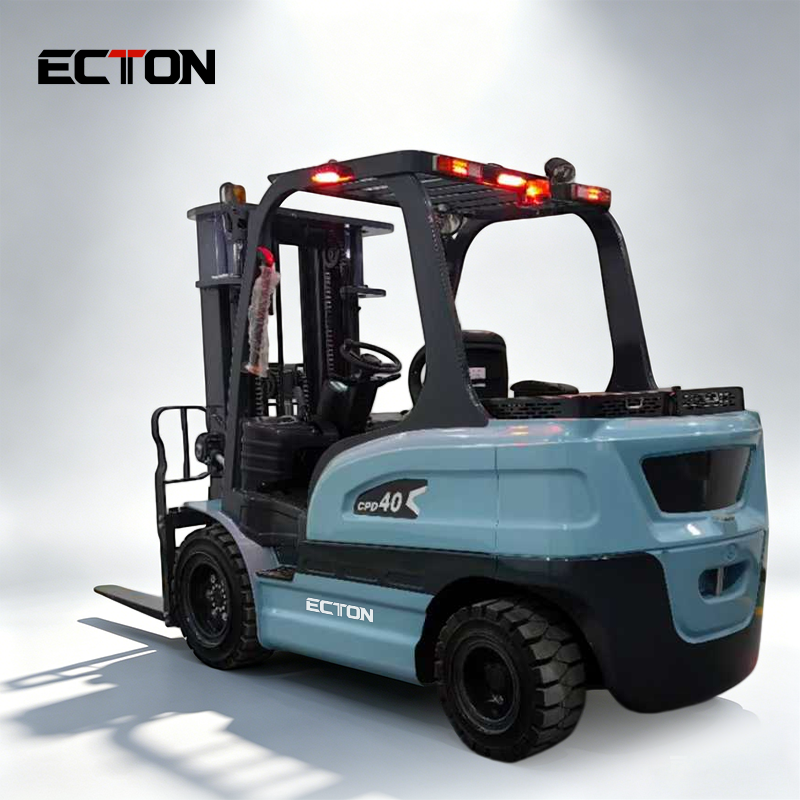

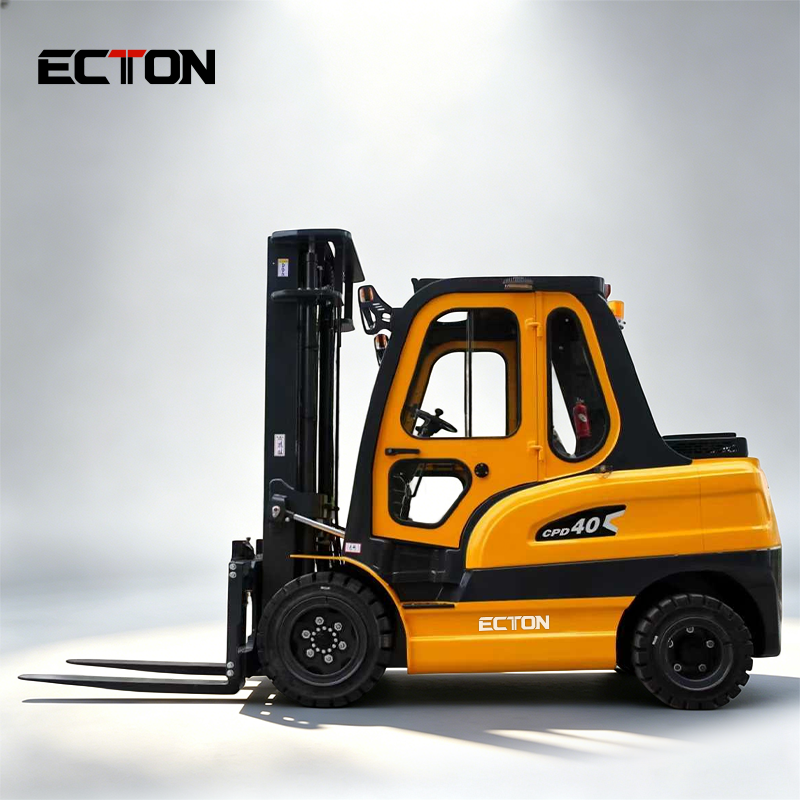

4 Ton Electric Forklift

Item NO.: ET009
Model: CPD40
Load Capacity: 4 Ton
Lifting Height: 3000-6000mm customized
Load Center: 500mm
Turning Radius: 2720mm
Optional: Side Shift / Fork Positioner

INQUIRY

Product Detail

Product Tags

Ecton 4 Ton Electric Forklift Features

High-power electric motor for stable heavy-load lifting
Long-cycle battery ensures all-day continuous operation
Zero emission & low noise, suitable for indoor use
Robust structure for durable industrial applications
Ergonomic operation panel for easy and comfortable use
Energy-saving design reduces overall operating costs

Quality you can see, reliability you can trust.

CPD40 Electric Forklift Specification

1.1	Model			CPD40
1.2	Power type			Electric
1.3	Operation type			Seated
1.4	Load Capacity	Q	kg	4000
1.5	Load center distance	C	mm	600
1.6	Front overhang	X	mm	460
1.7	Wheelbase	y	mm	1885
Weight
2.1	Weight (including battery)		kg	5300
Tires, chassis
3.1	Tire type, drive wheel/steering wheel			Solid
3.2	Drive wheel size (diameter x width)		mm	250-15
3.3	Steering wheel size(diameter x width)		mm	23X10-12
3.4	Number of drive wheels, steering wheels		mm	2X/2
3.5	Drive wheel track	b10	mm	1140
3.6	Steering wheel track	b11	mm	1080
Size
4.1	Mast and fork tilt angle	α/ β (°)		5/9
4.2	Mast height after lowering	h1	mm	2310
4.3	Maximum lifting height of standard mast	h3	mm	3000
4.4	Mast height when lifting to the highest position	h4	mm	4250
4.5	Head guard (cockpit) height	h6	mm	2260
4.6	Seat surface height	h7	mm	1180
4.7	Height of towing pin center	h10	mm	620
4.8	Vehicle length	l1	mm	4195
4.9	Length to vertical surface of fork	l2	mm	2920
4.10	Overall width	b1/ b2	mm	1360
4.11	Fork size	s/ e/ l	mm	50X150X1220
4.12	Fork frame outer width	b3	mm	1290
4.13	Ground clearance of lower end of fully loaded mast	m1	mm	175
4.14	Minimum ground clearance of vehicle body	m2	mm	160
4.15	Aisle width of pallet is 1200 wide x 1000 long	Ast	mm	4420
4.16	Aisle width of pallet is 800 wide x 1200 long	Ast	mm	4600
4.17	Turning radius	Wa	mm	2720
Performance Parameters
5.1	Travel speed, fully loaded/unloaded		km/ h	12/13.5
5.2	Lifting speed, fully loaded/unloaded		m/ s	0.28/0.4
5.3	Lowering speed, fully loaded/unloaded		m/ s	0.45/ 0.4
5.4	Maximum climbing grade, fully loaded/unloaded		%	15
5.5	Service brake type			Hydraulic + Mechanical
5.6	Parking brake type			Mechanical
Motor, power source
6.1	Drive motor rated power S2 60 minutes		kW	12
6.2	Lifting motor rated power S3 15%		kW	13.5
6.3	Battery voltage		Ah	80V/400AH
6.4	Drive control type			AC
